Low Cost New Design Plastic Injection Moulding Automatic Mobile Glass Industrial Manipulator

Overview

Quick Details

Condition:

New

Elevation Speed:

Customized

Vertical Travel(mm):

1750mm

Horizonal Travel(mm):

2500mm

Application:

Take out from Plastics Molding Injection Machine

Place of Origin:

Fujian, China (Mainland)

Brand Name:

KAIBOER

Model Number:

KMII-1700S

Weight:

1341kg

Dimension(L*W*H):

3500*700*2227mm

Power(W):

AC220V±10% 50/60Hz

Certification:

CE, SGS, TUV, ISO9001:2008

Warranty:

1Year's warranty

After-sales Service Provided:

Engineers available to service machinery overseas



SupplyAbility

SupplyAbility:

10 Set/Sets per Month

Packaging & Delivery

Packaging Details

In wooden case and plastic stretch film

Delivery Time

20-30Days

Port:

Xiamen

Lead Time :

20-30Days

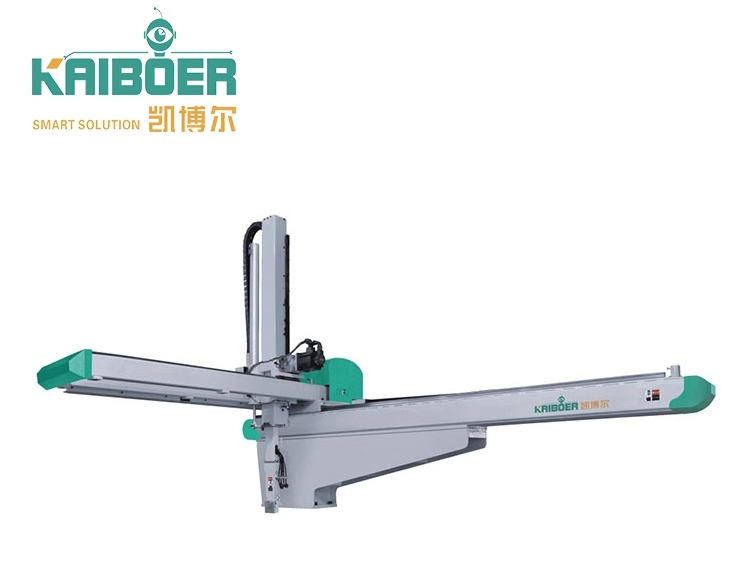

Low Cost New Design Plastic Injection Moulding Automatic Mobile Glass Industrial Manipulator

Product Description

COMMON SPECIFICATIONS
Power	Air pressure	Drive System	Posture(Air Cylinder)	Air Cylinder Driving Force(Air Pressure at 0.49MPa)		Control Box
				Max Load,lncl.Chuck Weight	Posture Torque
AC220V±10% 50/60Hz	0.49MPa	AC Servo Motor	90°	35Kg	88N-m	SPEC-FA1



GENERAL SPECIFICATIONS
Model	Stroke(mm)				Electric Consumption(KVA)	Max Power Consumption(KW)	Net Weight(Kg)		Air Consumption (NL/cycle)
	(1)Vertical	(2)Vertical	(1)Crosswise	Traverse			Main Body	Pendant
KMⅡ-1700	1700	-	(1)385-1500 (2)75-1190	2500 (2000) <3000> {3500}	7.50	3.85	1274	1.68	24
KMⅡ-1700S		1750			9.80	5.00	1341
KMⅡ-1900	1900	-			7.50	3.85	1281
KMⅡ-1900S		1950			9.80	5.00	1354
KMⅡ-2100	2100	-	(1)385-1800 (2)75-1490		7.50	3.85	1297
KMⅡ-2100S		2150

• Figure in () <> shows option stroke.
• Net weight includes the weight of interlock box and drive box.
• In the column of stroke, (1)stands for product side arm and (2)stands for runner side arm.
• As per setting of parameter,max.load may be over 35kg

Product features
Precision	Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast,silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion. Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot.
Safety	High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board is designed to CE EMC test with short circuit and noise proof functions.
Convenience	Vertical and kick displacements can be adjusted simply by changing the position limit blocks in easy directions. Control board fixtures are designed with flyer structure which provides benefit to maintenance. Cable drag chains help with cable management and ease for maintenance.
