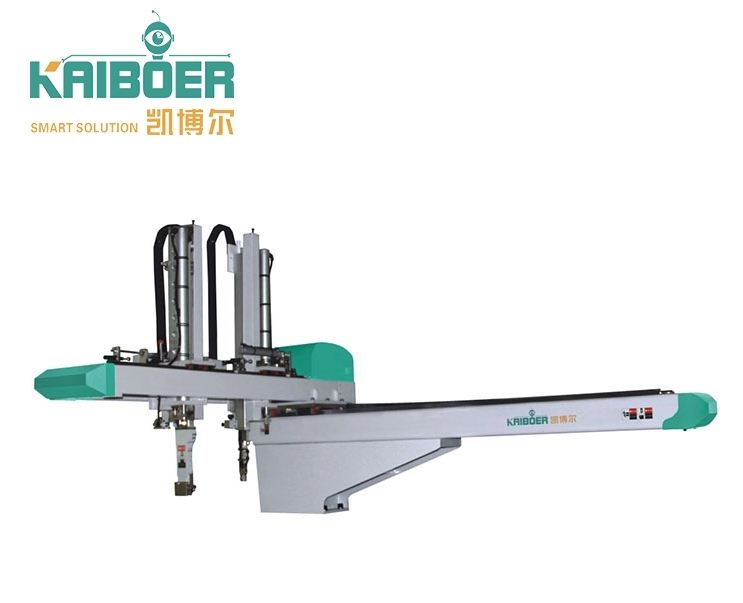

High Quality Pneumatic Automatic Robot Arm 6 Axis Cnc
日期：：2018/07/07 21:41:36
Overview
Quick Details
SupplyAbility
Packaging & Delivery
High Quality Pneumatic Automatic Robot Arm 6 Axis Cnc
Product Description
| COMMON SPECIFICATIONS | |||||||
| Power | Electric Consumption(KVA) | Max Power Consumption(KW) | Air pressure | Drive System | Air Cylinder Driving Force(Air Pressure at 0.49MPa) | Control Box | |
| Max Load,lncl.Chuck Weight | Posture Torque | ||||||
| AC220V±10% 50/60Hz |
0.8 | 0.48 | 0.49MPa | Vertical,Crosswise:Pneumatic Air Cylinder Traverse:AC Servo Motor |
10Kg | 12.67N-m | SPEC-MA1 |
| GENERAL SPECIFICATIONS | |||||||
| Model | Stroke(mm) | Net Weight(Kg) |
Air Consumption (NL/cycle) | ||||
| (1)Vertical | (2)Vertical | (1)Crosswise | (2)Crosswise | Traverse | |||
| KLⅡ-1100 | 1100 | - | 300 | - | 1800 (1600) <2000> |
433 | 48.5 |
| KLⅡ-1100S | 1150 | 200 | 475 | 62.5 | |||
| KLⅡ-1200 | 1200 | - | - | 434 | 52.0 | ||
| KLⅡ-1200S | 1250 | 200 | 477 | 67.0 | |||
| KLⅡ-1300 | 1300 | - | - | 435 | 55.5 | ||
| KLⅡ-1300S | 1350 | 200 | 479 | 71.5 | |||
- Figure in () shows for traverse 1600mm,<> shows for traverse stroke 2000mm.
- Net weight includes the weight of interlock box and drive box.
- In the column of stroke, (1, )stands for product side arm and (2)stands for runner side arm.
- As per setting of parameter,max.load may be over 10kg
| Product features | |
| Precision | Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast,silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion. Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot. |
| Safety | High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board is designed to CE EMC test with short circuit and noise proof functions. |
| Convenience | Vertical and kick displacements can be adjusted simply by changing the position limit blocks in easy directions. Control board fixtures are designed with flyer structure which provides benefit to maintenance. Cable drag chains help with cable management and ease for maintenance. |
